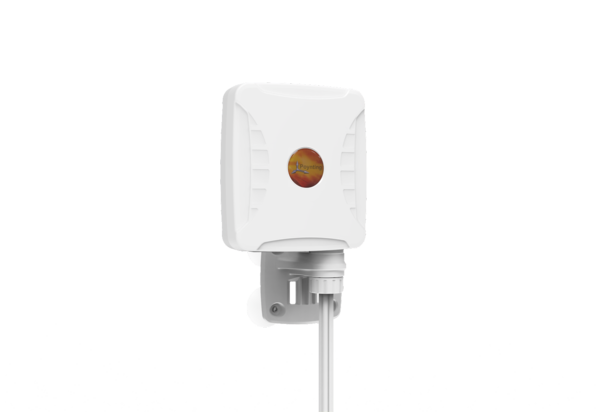

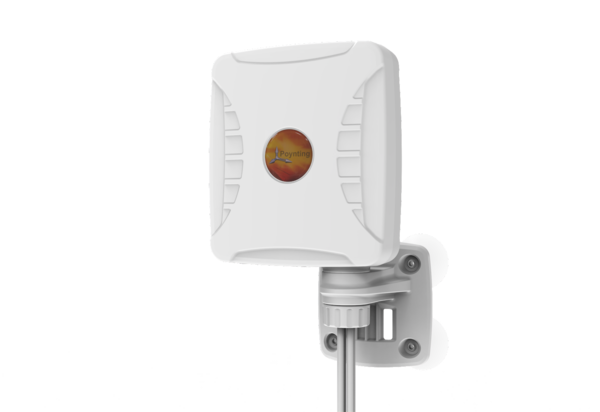

Poynting XPOL-1-5G 4×4 MIMO

Poynting XPOL-1-5G 4x4 MIMO

The XPOL-1-5G is Poynting's second generation "V2" of this very popular Cross Polarized (XPOL), cellular band, 4×4 MIMO antenna. This antenna is also available in the 2×2 MIMO antenna version. The antenna has been completely redesigned from the previous generation with an entirely new housing and antenna design. The antenna now includes the newer 3400-3800 MHz bands and the much sought-after lower 698 MHz band, previously not covered by the V1 and is suitable for 2G, 3G, 4G and 5G. This antenna performs exceptionally well in the following frequency bands: 698 - 960 MHz, 1700 - 2170 MHz, 2300 - 2700 MHz and 3400 - 3800 MHz, with a peak gain of 4 dBi across the frequency bands.

The radiation patterns of this antenna are Omni-Directional and exceptionally well controlled, further enhancing the antenna's performance. This makes the antenna perfect for most application areas, such as urban, rural, agricultural and commercial, to achieve the best possible coverage over a wide area. The robust design of the mechanical housing makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for demanding environments.

Features

• New 3400 to 3800 MHz, 5G band
• Wideband, including the latest 3.5 GHz bands
• X-polarized 2×2 MIMO antenna
• Mountable on the wall or on a pole
• Lightweight and robust
• Weatherproof (IP65)
• High pattern consistency between bands for 4G / 5G carrier aggregation

Application possibilities and areas

• Outdoor fixed wireless access (FWA) antenna.
• Consumer LTE / 5G internet connection
• Industrial and commercial LTE / 5G deployments
• Improving urban household reception
• Access to telemetry for power, energy and water
• Oil and gas communication systems
• Municipal and governmental systems
• Amplifiers for improving coverage

Specifications

• Ports: 4
• SISO / MIMO: 4×4 MIMO
• Coaxial cable type: HDF 195
• Coaxial cable length: 5m
• Frequency bands: 698-960 MHz | 1710-2700 MHz | 3400-3800 MHz
• Temperature range: -40 ºC to 70 ºC
• Ambient conditions: outdoor / indoor

Downloads

Datasheet
