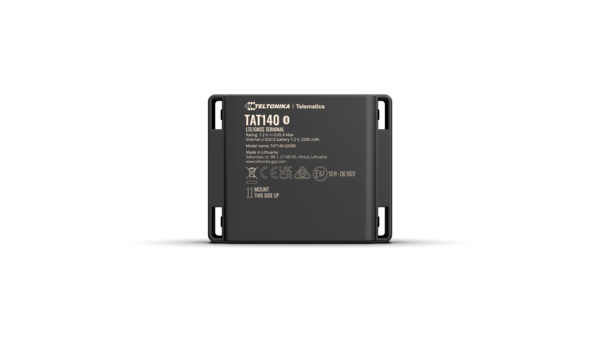

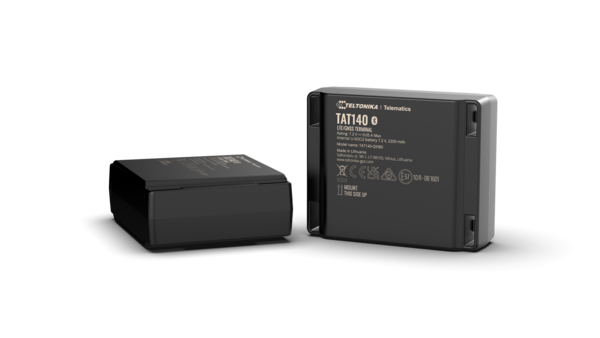

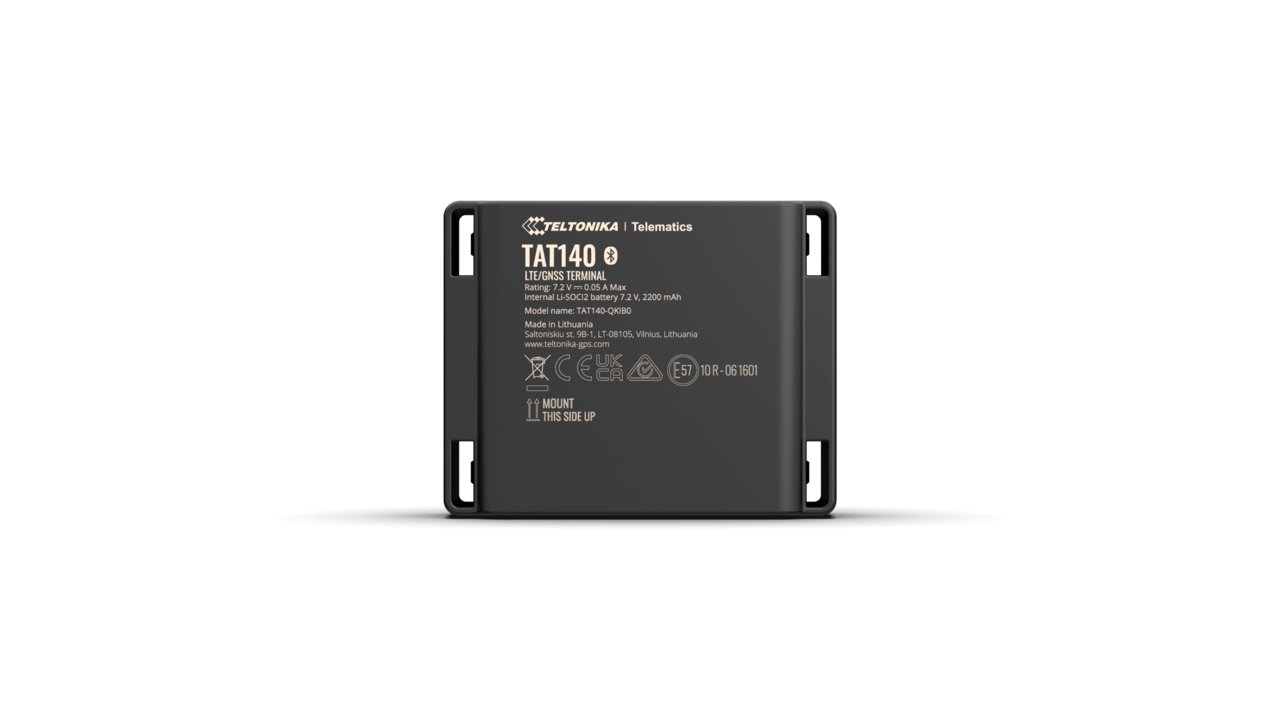

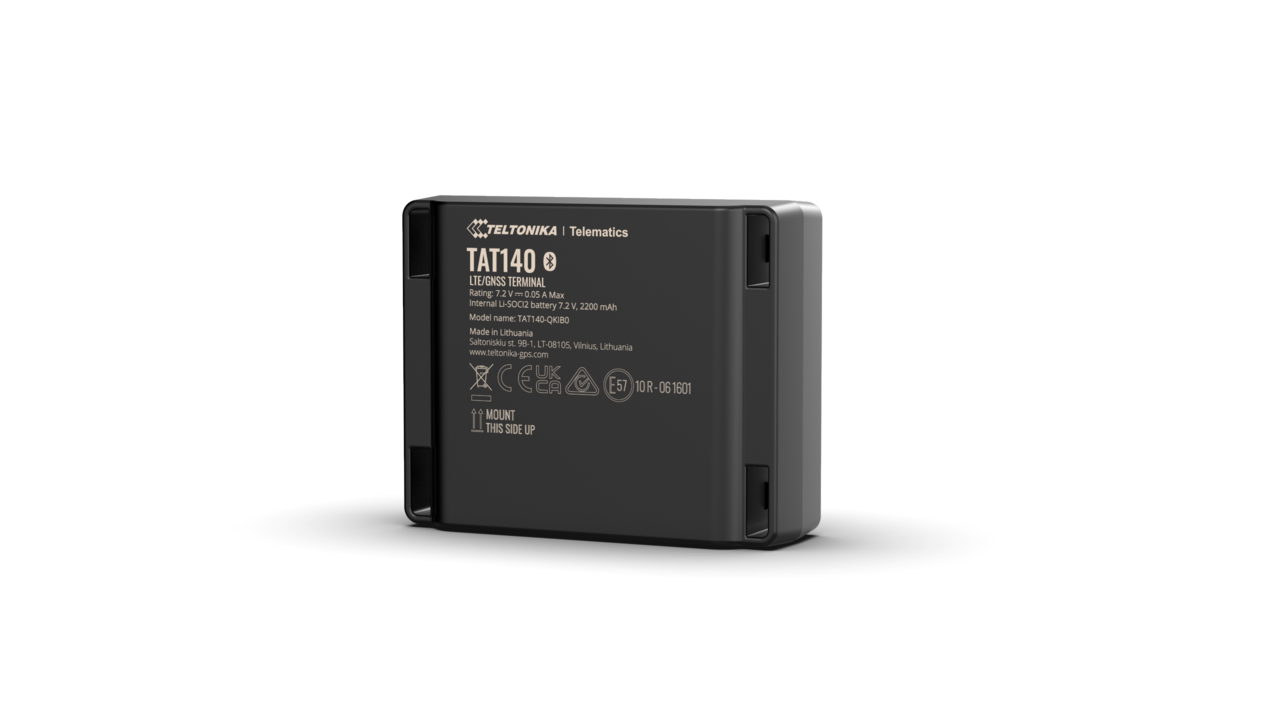

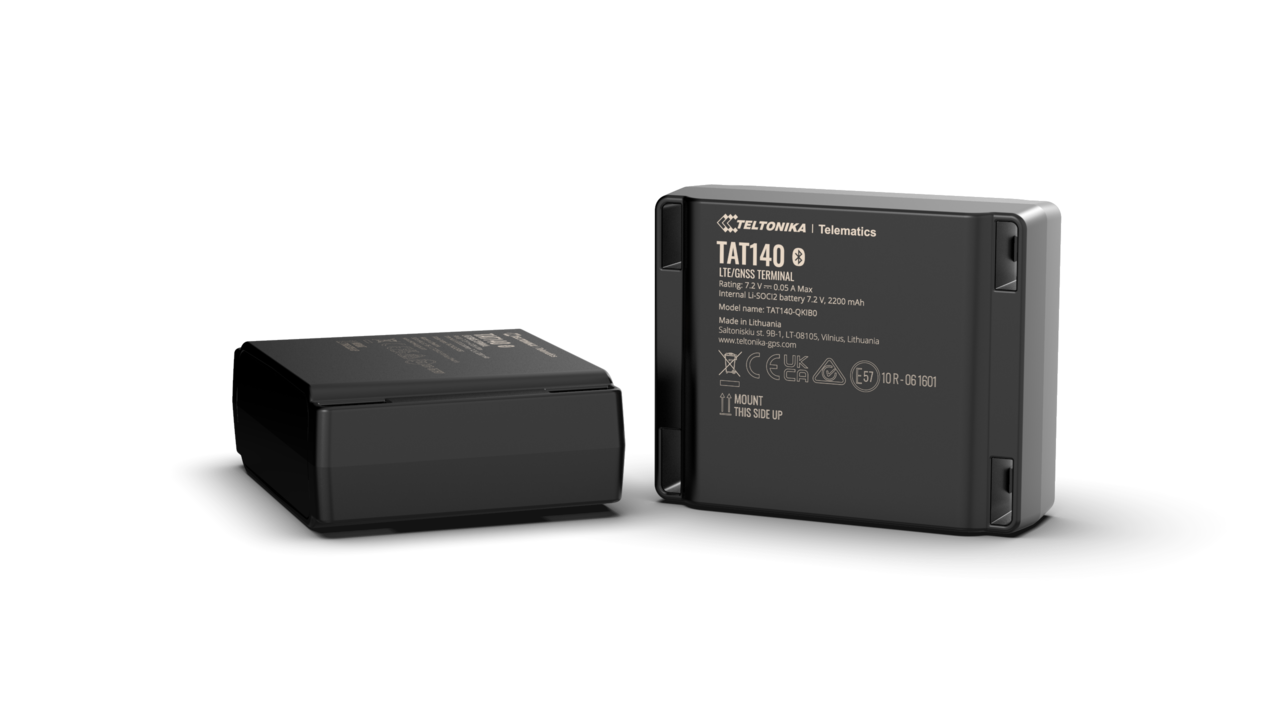

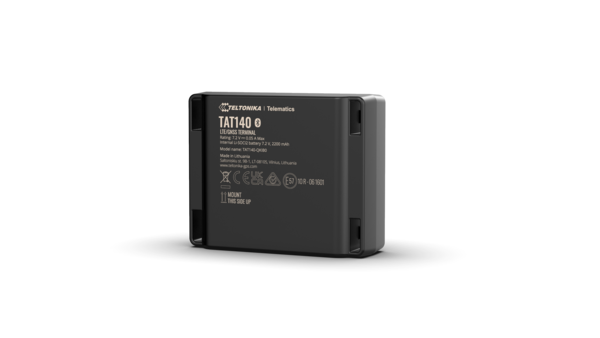

Teltonika TAT140

Teltonika TAT140

The TAT140, a state-of-the-art 4G LTE asset tracker from Teltonika, is designed for reliable tracking and monitoring of valuable, non-powered assets such as construction equipment, tools, furniture and more. With its LTE technology, the TAT140 offers extended network coverage and enhanced data transmission, allowing you to track your assets virtually anywhere in the world. Its waterproof housing (IP68) and compact design make it ideal for outdoor use and assets in motion.

Product specifications

• Models: TAT140-QJIB0 and TAT140-QKIB0, both equipped with the Quectel EG915U module and Teltonika TM2500 technology.
• Network: LTE Cat1 with 2G (GSM/GPRS) fallback and Bluetooth 4.0 + LE for connectivity to external sensors.
• GNSS: Supports GPS, GLONASS, GALILEO, BEIDOU, SBAS*, and QZSS* with tracking sensitivity of -165 dBm and positioning accuracy of less than 2.5 m CEP.
• Battery: 2200mAh 2S extremely low self-discharge Li-SOCl2 batteries, 7.2V non-rechargeable.
• Physical Specifications: Dimensions of 78 x 63 x 28 mm and weight of 115g (with batteries).
• Resistance: IP68 water and dust proof, operational temperature range of -35 °C to +75 °C.

Key Benefits

• Rugged Construction: Specially designed to withstand even the harshest conditions, perfect for tracking construction equipment and other valuable assets outdoors.
• Advanced Tracking: Provides accurate tracking information both during movement and standstill, thanks to advanced GNSS technology.
• Long-Term Operation: Powerful battery provides long-term operation without an external power source, even in deep sleep mode.
• Versatile Applications: Suitable for various applications such as trailer tracking, vehicle security, tool tracking and more.
• Easy Configuration and Updates: Easy configuration and firmware updates via OTA (over-the-air) updates and user-friendly applications.

The TAT140 is the ideal choice for tracking and securing your most valuable assets. With its rugged design, advanced tracking capabilities and global LTE connectivity, the TAT140 provides an all-in-one solution for asset management in a variety of industries.
