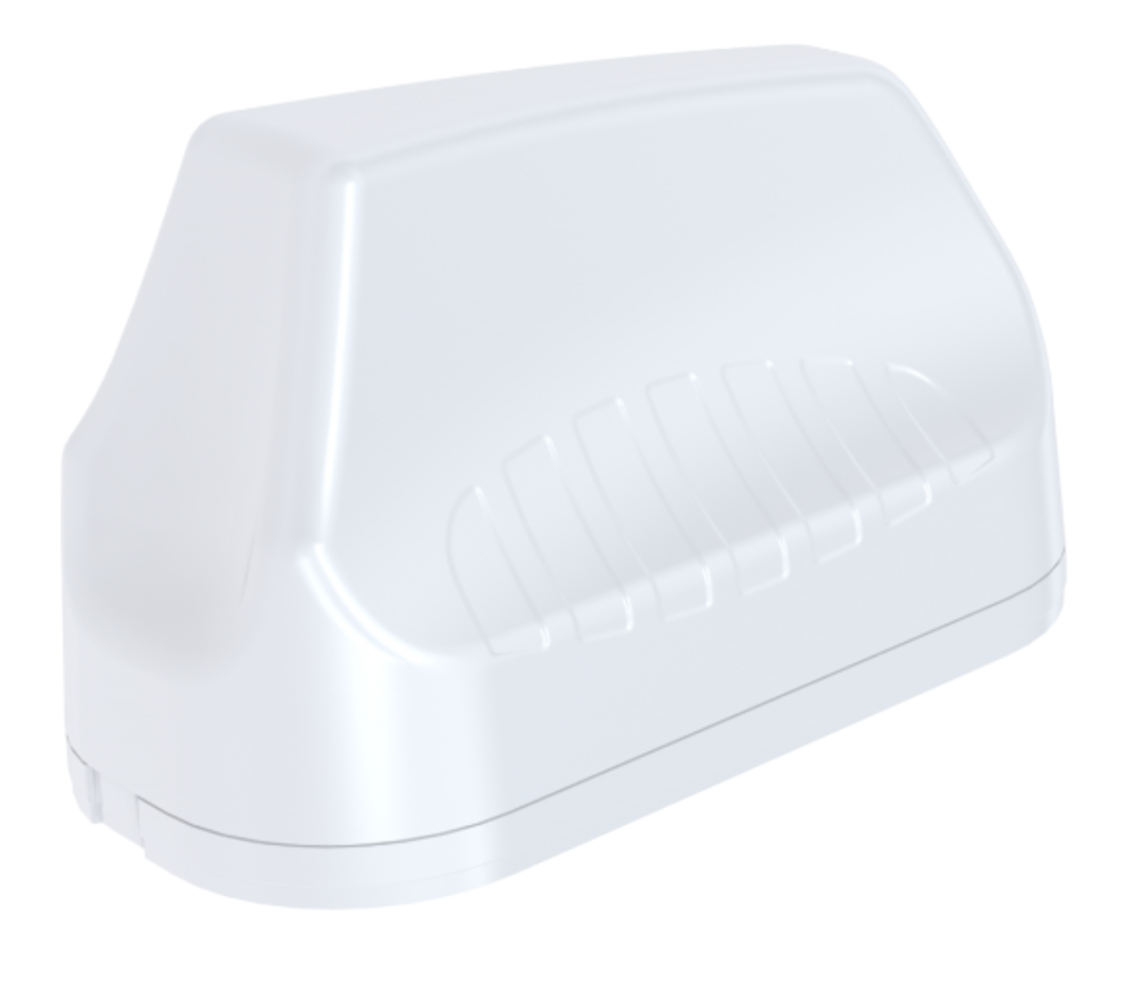

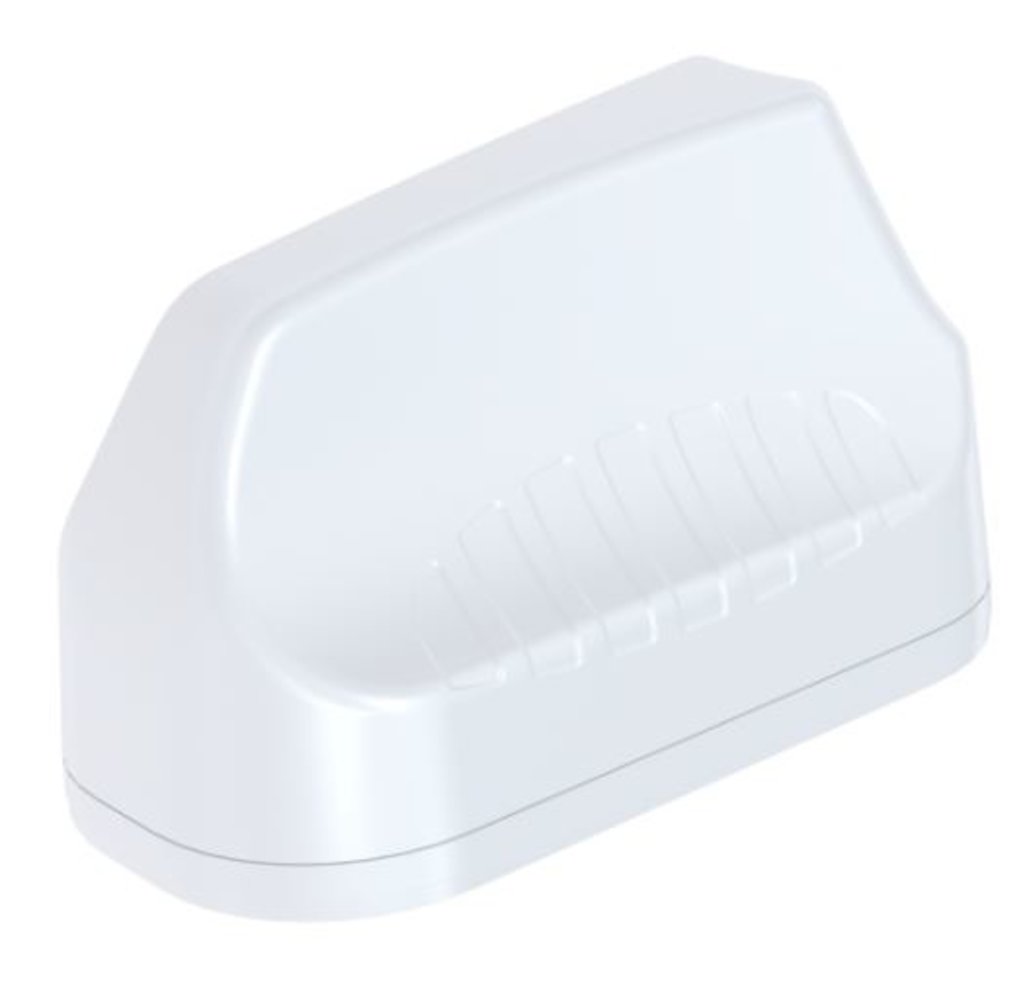

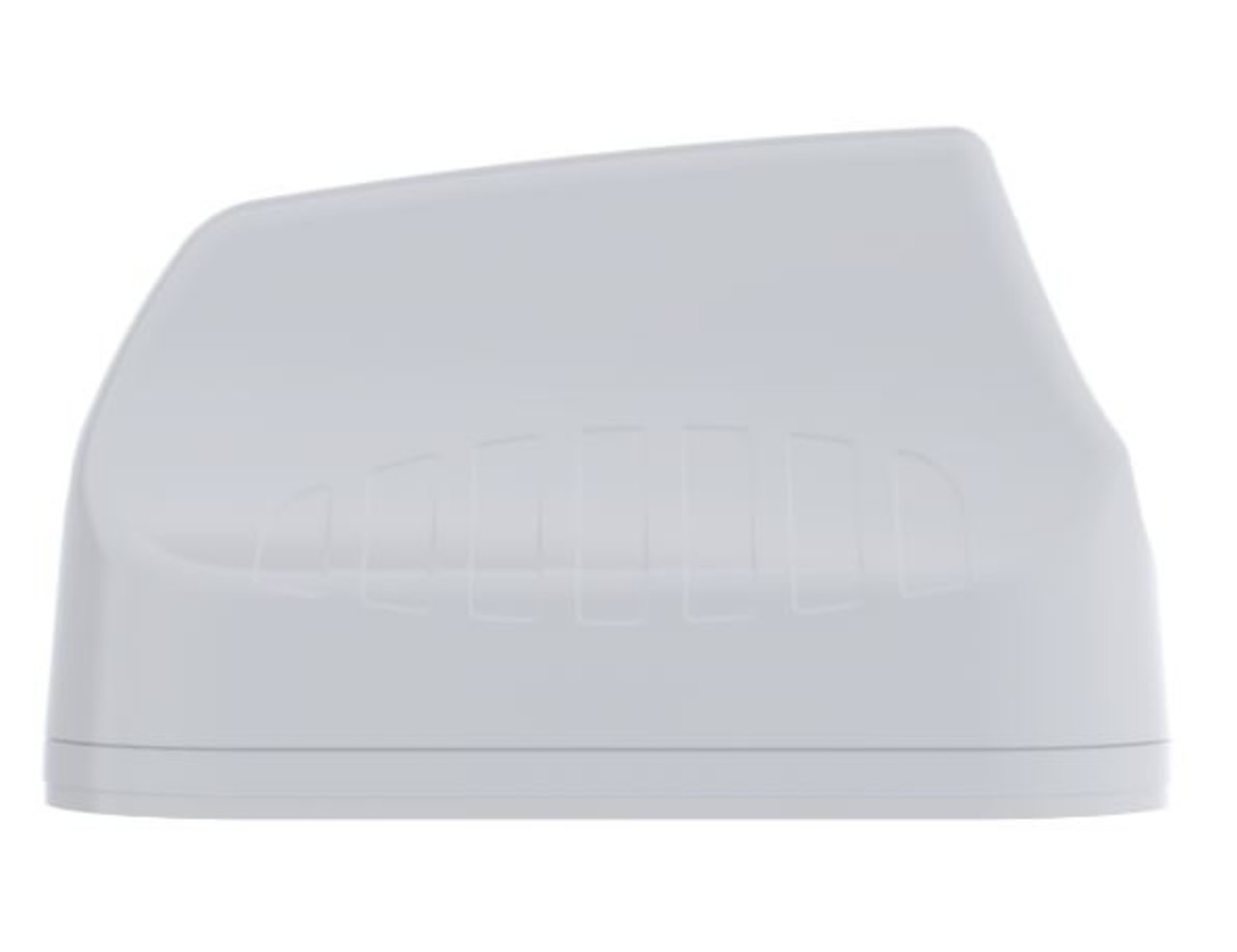

Poynting 5-in-1 MIMO combi antenna

Product description
Poynting MIMO-3-15 | 5-in-1 MIMO The MIMO-3-15 is a 5-in-1 high performance multi-frequency antenna in one housing, providing 2x cellular, 2x WiFi and a GPS / GLONASS antenna. The 2 cellular MIMO antennas (for 2G / 3G / 4G) cover the current 698 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450 MHz and 3.5 GHz CBRS ban...

Poynting MIMO-3-15 | 5-in-1 MIMO

The MIMO-3-15 is a 5-in-1 high performance multi-frequency antenna in one housing, providing 2x cellular, 2x WiFi and a GPS / GLONASS antenna. The 2 cellular MIMO antennas (for 2G / 3G / 4G) cover the current 698 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450 MHz and 3.5 GHz CBRS bands, which is becoming popular on the various international mobile network operators for LTE. The antenna's ultra-wideband performance allows it to be used by different operators and technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications. The antenna offers 2 separate dual-band Wi-Fi antennas, providing simultaneous 2.4 GHz and 5 GHz on each antenna with 2 × 2 MIMO capability. The fifth antenna is a powerful active GPS / GLONASS system that operates down to -40°C.

The MIMO-3-15 exceeds the performance of most competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiation elements provide an excellent balance between omni-directionality, pattern diversity and good radiation capabilities at the desired altitude. This is an important criterion for the transportation and marine market, for which the antenna is specifically designed. The main applications are for commercial/industrial vehicles, shipping, M2M and other IoT systems that use a wide range of radio technologies, while remaining future-proof over the wide frequency band.

Key Features

  • 5-in-1 high performance 2G / 3G / 4G / LTE antenna with multiple frequencies (5G ready)
  • 2X2 MIMO LTE, 2X2 MIMO Wi-Fi and GPS / GLONASS
  • Ultra-wideband, including 450 MHz and 3.5 GHz CBRS bands
  • Robust and water-resistant antenna (IP 68)
  • Ideal for transportation and marine use

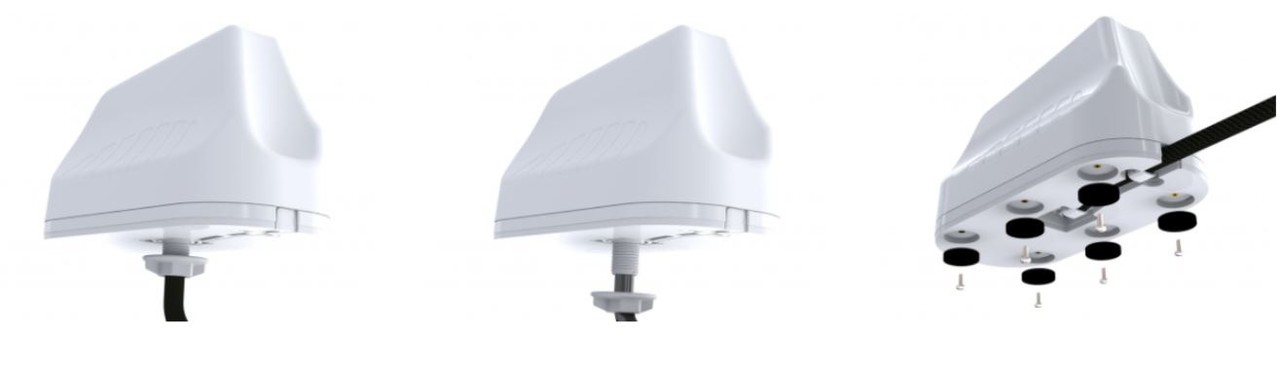

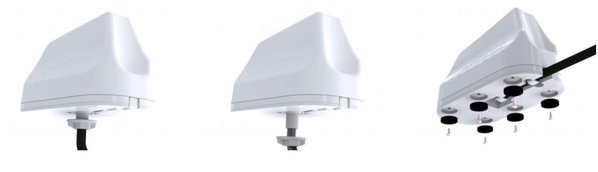

  • Multiple mounting options for easy installation

Further features

  • Ultra-wideband 410 MHz to 470 MHz, 698 MHz to 2700 MHz and 3400 MHz to 3800 MHz bands
  • Smartly designed, decorated antennas give superior MIMO performance in both Wi-Fi (dual band) and cellular bands
  • Above features are maintained from 698 MHz to 5800 MHz in relevant bands and the 450 MHz band
  • Includes high performance GPS / GLONASS antenna
  • Careful mechanical design ensures robustness, corrosion, water and dust resistance (IP68)
  • Ground plane independent: the MIMO-3 is designed with an internal ground plane, making this antenna suitable for deployment on all types of surfaces

Application possibilities and areas

  • Transportation broadband, automation and telemetry for buses, utility vehicles, trucks and public safety vehicles
  • Industrial factory automation, robotic machines and other telemetry of M2M systems
  • Agricultural and agricultural automation such as M2M & IoT
  • Cellular broadband distribution for sea/boats (inland and coastal vessels)
  • Mining vehicles and machine communications, telemetry and automation (M2M & IoT)

Product specifications

Article number
ANT700068
SKU
A-MIMO-0003-15

Recently checked

Poynting 5-in-1 MIMO combi antenna
Poynting5-in-1 MIMO combi antenna
In stock
€209,00 Excl. tax
